SMALL MOULDING FACILITIES

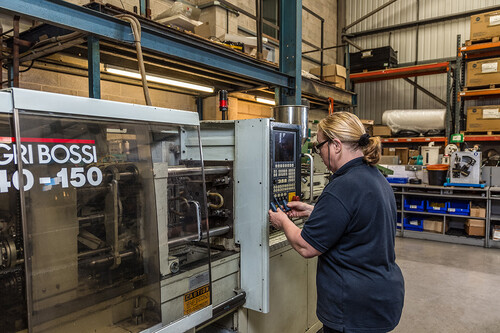

Our small injection machines give us the ability to mould products up to the weight of 155g.
The main characteristics of our machines are :
| MACHINE REF. | TONNAGE (T) | MAX SHOT WEIGHT (g) | DIST BETWEEN TIE BARS (MM) | MOULD HEIGHT MIN (MM) | MOULD HEIGHT MAX (MM) |
|---|---|---|---|---|---|
| NEGRI BOSSI | 40 | 84 | 285 X 285 | 100 | 300 |
| SANDRETTO | 60 | 110 | 320 X 320 | 85 | 410 |
| NEGRI BOSSI | 80 | 150 | 360 X 360 | 120 | 400 |
| NEGRI BOSSI | 85 | 155 | 360 X 360 | 150 | 400 |
Definitions
Tonnage : Clamp force.
Max shot weight : Max weight of produced part.
Distance between tie bars : Gives the mould max sizes.
