Lockable Plug CAMSTOPPER® CAMV model

Specifications


The CAMSTOPPER® CAM V plug is a patented mechanical plug equipped with a "locking" system guaranteeing that the plug can be held without risk of being removed by an unauthorised person or service.

The CAM V, with its handle specially designed for this application can only be installed, removed with a dedicated tool, the extension RALCAMV.

Areas of use of the CAMSTOPPER®​ CAM V :

  • Sewage networks ;
  • Wastewater networks ;
  • Temporary or permanent obturation of pipes from ND 100 to 160 mm

(For bigger diameters, please contact us).

CAMSTOPPER®​ CAM V is designed :

  • To enable sewerage system operators to control the connections
  • For pressure resistance between 0.3 and 0.5 bar


The CAMSTOPPER® Lockable mechanical plug is made of nylon and EPDM grade WC according to EN 681-1.


Advantages :

  • Can be mounted and retrieved remotely safely. It allows the operator to install the plug without going down in the manhole.
  • Ergonomically designed, the CAMSTOPPER® CAM V has a stop that prevents the plug from rotating in the pipe and makes it easy to install.
  • Equipped with a 1/2" bypass, it allows a simple connection, in order to divert the flow or let out a trickle of water, once the cap removed.

The entire CAMSTOPPER® range is certified by the WRC Technical Notice (# PT / 406/0317).

Certifications

NameExtensionWeight
PRODUCT CERTIFICATE WRC OBTURATEURS CAMSTOPPER CAMpdf197.91 Ko  Download
ASSESSMENT SCHEDULE CAMSTOPPER CAM PT 407 NORHAMpdf31.85 Ko  Download

INSTALLATION / APPLICATION

  • norham-photo-studio-canne-RAL-CAMV.jpg
    INSERT THE CAMV IN THE PIPE USING THE POLE RALCAMV

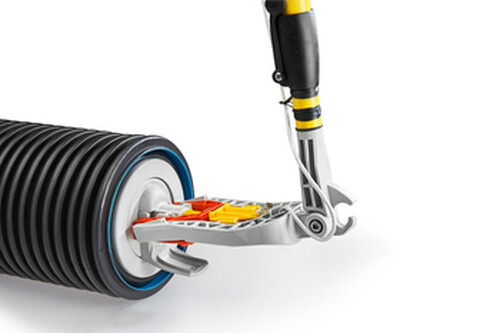

  • norham-photo-studio-obturateurs-CAMV-montage-5.jpg
    LOWER HANDLE TO LOCK THE CAMV
  • norham-photo-studio-obturateurs-CAMV-montage-4.jpg
    LOCKED PIPE

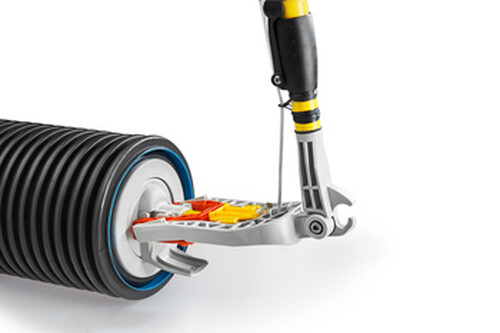

  • norham-photo-studio-obturateurs-CAMV-montage-2.jpg
    PULL THE ROPE RALCAMV TO UNLOCK THE CAMV

Dimensions

Ref.DescriptionTolerances (mm)Ps (bar)
CAMV090Patented Lockable CAMSTOPPER®90-970,5
CAMV100Patented Lockable CAMSTOPPER®96-1030,5
CAMV105Patented Lockable CAMSTOPPER®102-1070,5
CAMV110Patented Lockable CAMSTOPPER®108-1120,5
CAMV120Patented Lockable CAMSTOPPER®116-1230,5
CAMV130Patented Lockable CAMSTOPPER®125-1320,5
CAMV140Patented Lockable CAMSTOPPER®136-1420,5
CAMV145Patented Lockable CAMSTOPPER®144-1490,5
CAMV150Patented Lockable CAMSTOPPER®147-1530,5
CAMV160Patented Lockable CAMSTOPPER®157-1620,5


Documentation to download

CAMSTOPPER® Mechanical sewer plugs.pdf [pdf] - 1.03 Mo
